ALMEX SMARTFARE – THE NEW VALIDATOR – E-TICKETING MEETS PAYMENT

PDF download
12

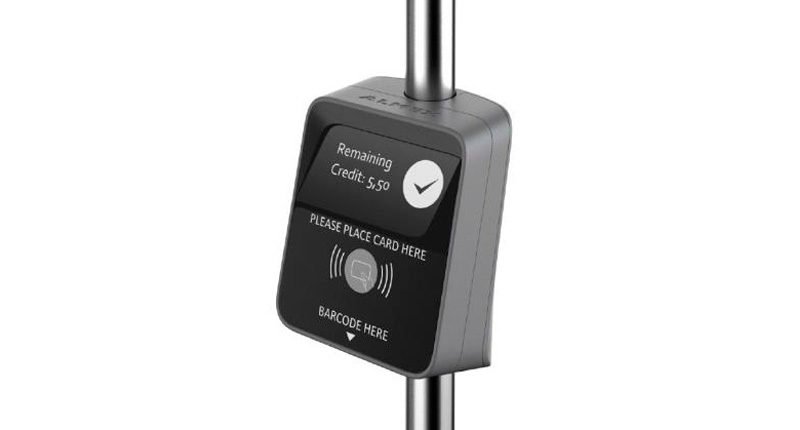

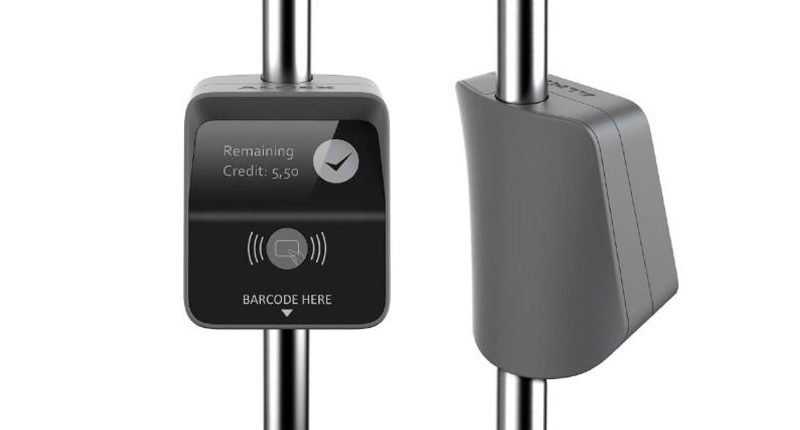

The ALMEX SmartFare is the powerful and compact validator for contactless e-tickets, 1D / 2D barcodes and payment applications.

The powerful compact contactless card reader! Thanks to its power reserves, the intelligent smart card terminal is just as suitable for true stand-alone operation as it is for integration in existing on-board networks.

The new validator finds its application in buses and trains to load and validate electronic tickets.

Interfaces / Standards / Options

  • RS232, RS485, IBIS (option)
  • Ethernet with POE (option)
  • USB interface
  • RFID ISO 14443a / b
  • RFID ISO 15693
  • NFC IP1 (P2P) ready
  • NFC card emulation ready
  • Sony Felica (JIS X 6319-4) ready
  • 1D / 2D barcode imager (option)
  • GiroGo ready (option)
  • PCI PTS 4.x SRED (option)
  • EMC Contactless V2.4, level 1
  • EMC Contactless V2.4, level 2 (option)

Supported card types

  • ISO 14443-4 compatible smart cards
  • NFC Tags Type 1-4
  • Mifare Classic / Plus / DESFire / DESFire EV1 / Ultralight
  • Jewel
  • Calypso (ISO 14443b)

Security modules

  • 4 SAM sockets for ID000 format
  • T = 0 and T = 1 for Power Class A, B and C

Safety

  • PCI PTS 4.x compatible security architecture (tamper detection)
  • Cryptography hardware accelerator
  • 3DES, AES, SHA, DUKPT, SSL

Expandability

  • Micro-SD card slot

Mounting

  • Easy integration on the handrail
  • Support bar diameter 30-40 mm

Operating voltage

  • 18-36 VDC

Casing

  • Flame retardant plastic housing
  • Robust ergonomic design
  • Code 11, 39, 93, 128Codabar
  • 2 out of 5 Interleaved
  • EAN 8, 13
  • UPC A, E0
  • PDF417
  • Maxi code
  • Vericode
  • Aztec code
  • QR code
  • UIC and VDV barcodes
  • Others on request
  • Graphic monochrome customer display with 240 x 64 pixels
  • 4 x LED green (EMC)
  • 1x red LED
  • 1x LED yellow
  • Buzzer with variable volume
