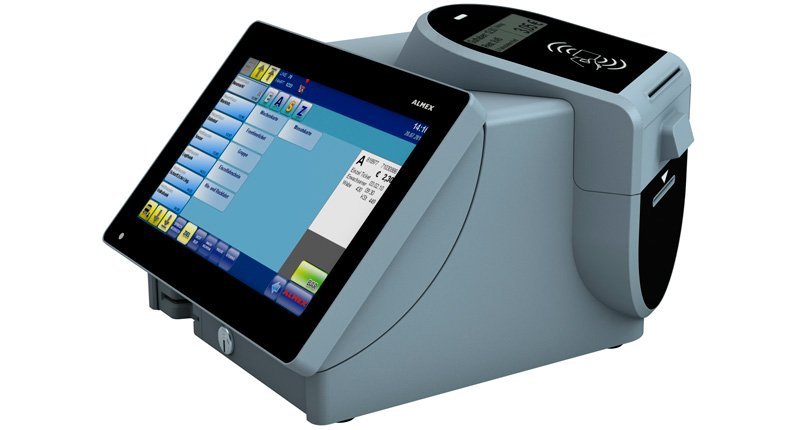

ALMEX optima CL
The ALMEX optima CL is a comfortable all-in-one bus printer for staff-operated ticket sales.
Outstanding features
Equipped with many comfort and safety options, the ALMEX optima CL is the perfect system for high demands in public transport.
Frequent applications
- Staff-operated ticket sales
- e-ticketing (VDV-KA, ITSO, Calypso)
- Passenger information
- Real-time / ITCS
- Pre sales
Technical specifications
Audio
- Integrated speaker, audio output
Printer
- Configurable ticket format with a width of up to 82.5 mm
- Paper thickness 60-140 g / m²
- Print resolution 200 dpi
- Printing speed max. 250 mm / s
- Integrated cutter
- 1D barcode scanner for ticket tracking / paper management
Interfaces
- RS232, RS422, RS485
- IBIS master or IBIS slave configurable
- Ethernet, WLAN 802.11 b / g,
- GPRS / GSM, UMTS for data transmission and telephony
- GPS
- Digital I / 0
- Programmable memory in the mounting plate
- Integrated reader for contactless (RFID) chip cards
- RFID card standards: ISO 14443a / b, ISO 15693
- VDV-KA, ITSO
- 4 SAM card slots, ISO 7816
- Driver card reader with card lock
- 1D / 2D barcode scanner
Casing
- Compact, ergonomic design
- IP 54, UL94-V0 5VB
- Vertical ± 15 ° swiveling display
Dimensions
- 232 x 205 x 255 (W x H x D)
Mounting plate
- Mechanical locking of the device, lockable
Display
- 8.4 “or 10.2” color touch screen display. Inclination angle vertical ± 15 ° adjustable.
- Automatic brightness adjustment
- Graphic, reflective customer display (98 x 26 mm)
- Traffic light for card status at the boarding control
