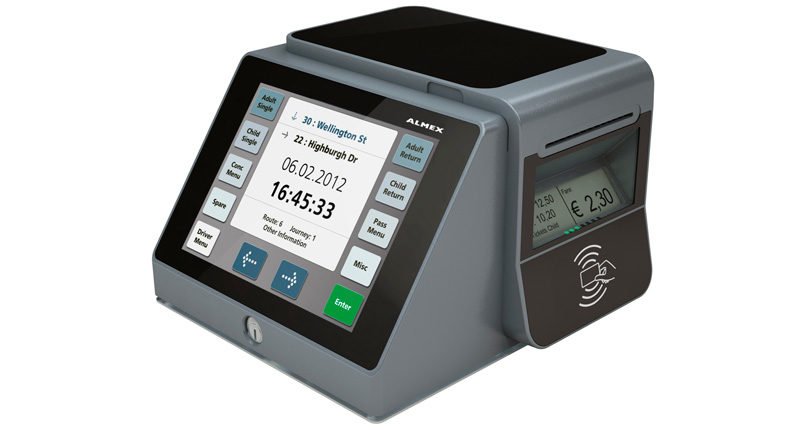

ALMEX optima BL

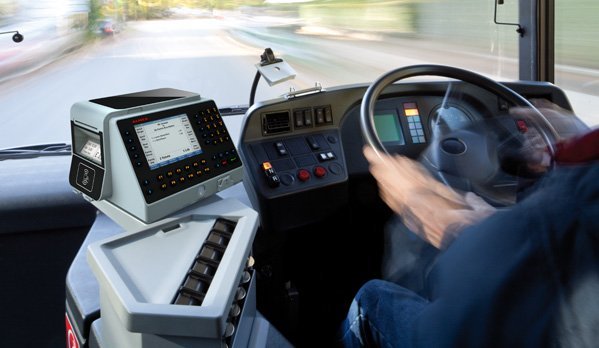

The device concept focuses on the comfortable and fast handling of passengers at the stop. The modular design of the system enables the flexible design and further development of the installation.

• Staff-operated ticket sales
• e-ticketing (VDV-KA, ITSO, Calypso)
• Passenger information
• Real-time / ITCS
• Pre sales

System platform

806 MHz 32 bit RISC CPU PXA320,
256 MB SDRAM, 1 GB Flash, SDHC slot
32-bit real-time CPU for critical functions
Crypto processor for card processing

Audio

Integrated speaker, audio output

Printer

• Configurable ticket format with a width of up to 86 mm
• Paper thickness 60-120 g / m²
• 110 mm paper roll diameter (up to 2,400 tickets in credit card format)
• Print resolution 200 dpi
• Printing speed max. 250 mm / s
• Integrated cutter

Interfaces

• RS232, RS422, RS485, USB, IBIS
• Ethernet, WLAN 802.11 a / b / g / n
• Digital I / 0 (6x)
• Programmable memory in the mounting plate
• Integrated RFID reader
  • ISO 14443a / b, ISO 15693
  • VDV-KA, ITSO
  • 4 SAM card slots, ISO 7816
• 1D / 2D barcode scanner

Casing

• Compact ergonomic design
• Left-hand drive and right-hand drive version available
• IP 54, UL94-V0 5VB

Dimensions

• 227 x 196 x 255 (W x H x D)

Mounting plate

• Mechanical locking of the device, lockable

Operating voltage

• 18-36 V DC, sleep <20 mA, nominal <2 A, reverse polarity protected
• Self-charging internal backup battery
• Lithium battery for real-time clock

• 8 “SVGA color display (800 x 600 pixels), capacitive touch screen
• Optional: 5.7 “VGA color display (640 x 480 pixels) with 46 keys
• Graphic, reflective customer display (98 x 26 mm)

• Mounting plate
• GPS, GSM / GPRS / 3G
• Vehicle router, passenger WLAN
• External eTicket validator almex.smartfare
• 1D / 2D barcode reader
