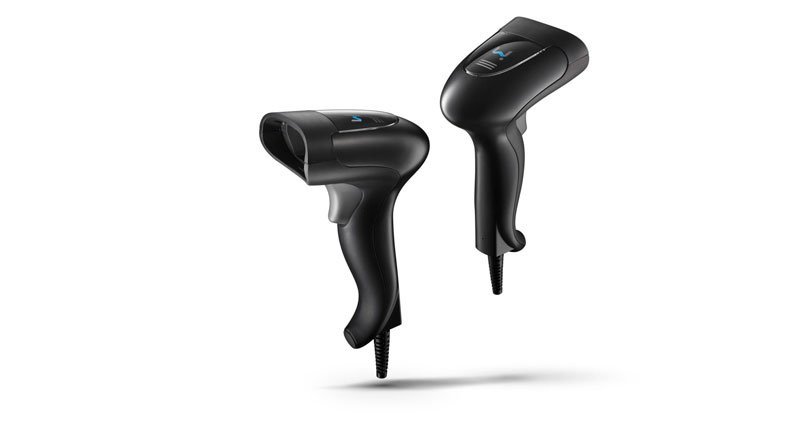

AiM SC312 Barcode Scanner

Barcode Scanner Optics

  • Light source : Aiming green LED, warm white illumination LED
  • Scan Method: CMOS area sensor, 640 x480 pixel
  • Scan rate: Up to 100 fps
  • Trigger mode : Manual, auto trigger, stand detection
  • Reading pitch angle : ±65°
  • Reading skew angle : ±65°
  • Reading tilt angle : 360°
  • Curvature : R 20 mm (UPC 12)
  • Min. resolution at PCS 0.9 : 0.1 m m / 3.9 mil
  • Min. PCS value : 0.2
  • Field of view : Horizontal 38.0°,Vertical 26.4°
  • Depth of field at code 39 :
    • 23 ~ 74 mm (0.127 mm) / 0.91 ~ 2.91 in (5 mil)
    • 26 ~ 173 mm (0.254 mm) / 1.02~ 6.81 in (10 mil)
    • 48 ~ 335 mm (0.508 mm) / 1.89 ~ 13.19 in (20 mil)
  • Depth of field at code 128:
    • 41 ~ 129 mm (0.2 mm) / 1.61 ~ 5.08 in (7.87 mil)
  • Depth of field at UPC:
    • 26 ~ 212 mm (0.33 mm) / 1.02 ~ 8.35 in (13 mil)
  • Depth of field at code PDF417:
    • 21 ~ 93 mm (0.169 mm) / 0.83 ~ 3.66 in (5 mil)
    • 17 ~ 146 mm (0.254 mm) / 0.67 ~ 5.75 in (10 mil)
  • at QR Code :
    • 37 ~ 63 mm (0.169 mm) / 1.45 ~ 2.48 in (5 mil)
    • 0 ~ 132 mm (0.381 mm) /
    • 0 ~ 5.2 in (15 mil)
  • at DataMatrix :
    • 39 ~ 65 mm (0.169 mm) / 1.54 ~ 2.56 in (5 mil)
    • 19 ~113 mm (0.254 mm) / 0.75 ~ 4.45 in (10 mil)

Supported Symbologies

  • Barcode (1D):
    JAN/UPC/EAn incl. add on, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), GS1 DataBar Limited, GS1 Databar Expanded, IATA, Industrial 2 of 5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/ Plessey-UK/Plessey, S-Code, Telepen, Tri-Optic
  • Postal code:
    Intelligent mail Barcode, korean Postal Authority code, POSTNET PLANET, Japan Postal, Netherland KIX Code, UK Postal, Australian Postal Code
  • 2D Code:
    Intelligent Aztec Code, Chinese Sensible code, Codablock F, Data Matrix (ECC 200/ECC-000-140), Maxi Code, MicroPDF417, Micro QR Code, PDF417, QR code, Passport MRZ (OCR-B)

Processor

  • Arm-Cortex A7@800 Mhz

Interface Version

  • RS232, USB

Communication

  • RS232: DB9 pin (with external power supply)
  • USB: ver. 2.0, HID/VCP, USB A connector

Power

  • Voltage requirement : 5V ± 10% (USB), 4.5 ~ 6.5V (RS232C)
  • Current consumption : Typical 400 mAh

Indicator

  • Visual : 1 white LED
  • Non visual : buzzer

Keys

  • 1 Scan key

Dimensions and Weight

  • Dimensions : 75,4 mm* 169,5mm* 121,2 mm
  • Weight: 145 g
  • Cable length: 2 m

User Environment

  • Operating Temperature: 5~50
  • Storage Temperature: 30~60
  • Humidity in operation: 5%~90% non condensing
  • Humidity in storage: 5%~90% non condensing
  • Ambient light immunity: Fluorescent 10,000 lx max, direct sun 100,000 lx, Incandescent 10,000 lx
  • Sealing standard : IP42
  • Drop resistance : 1.5m onto concrete surface
  • Vibration: 10 100Hz with 2G for 1 hour
