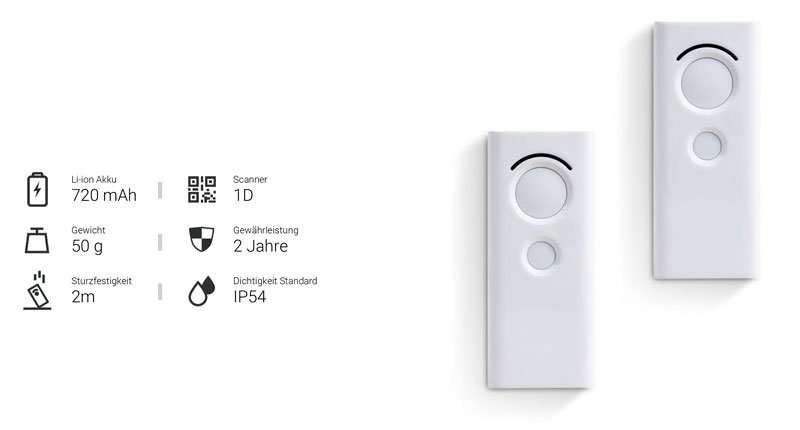

Ultra-compact Bluetooth Scanner
Compatible with Smartphones and Tablets Running on iOS, Android, or Windows
Memory, Communication and Performance
Memory
- 2MB Flash ROM
- 10.000 min scan data storage
Communication
- Bluetooth: Ver. 2.1 + EDR Class 2 (10m)
- Profil: SPP & HID
- Host Interface Supported: Mini USB
Performance
- Receiving Device: Linear CCD imager
- Sensor Resolution : CCD sensor, 1 500 pixels
- Light source : Visible LED 625nm
- Optical Resolution: 5 mil
- Scan rate : Nominally 100 scans/second
- Printing Contrast : 20% Minimum
- Ambient Light: 110,000 Lux
- Reading Distance: 38mm~610mm
Corresponding Codes, Battery and Keys
Corresponding Codes
- UPC A, UPC E, UPC E1, EAN8, EAN13, Bookland EAN, Bookland ISBN Format, UPC EAN Supplementals, ISSN EAN, CODE 128, GS1 128, ISBT 128, ISBT Concatenation, Code39, Trioptic Code 39, Code39 Full ASCII, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
Battery
- Li-ion 720 mAh
- 15.000 Scans
Keys
- Scan key
- Function key
- Reset key
Software, Dimensions and Weight and User Environment
Software
- Windows, iOS(5.0 höher),
- Android(4.0 höher)
Dimensions and Weight
- Dimensions : (H)13.4x (W)38 x (L)85mm
- Weight: 50 g
User Environment
- Radio Interference: VCCIB
- Drop Test: 2m 1 drop, and 1 meter. Tumble Drop 100 Cycle
- Storage Temperature :: -25°C ~ 60°C
- Operation Temperature: -10°C ~ 50°C
- Humidity: 5% ~ 95%
- Sealing Standard: IP54
- EMC Regulatory: BSMI / NCC / CE / FCC
Warranty and Accessories
Warranty
- 2 years (excluding consumable parts battery, cable, etc.)
Accessories
- USB cable, Hand strap, User Guide
